About

Product Details

The Laser level LL500 is a one-person leveling system designed for longer range measurements across your entire site. Accurate, stable and reliable, the LL500 features a 1,650 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site.



Applications

  • Excavating, digging footings, and septic tanks with CR600 receiver
  • Sub-base leveling with skid steer loaders and CR600 receiver
  • Longer range machine control applications
Features
  • 1,600-foot working diameter which increases productivity by reducing need for
    multiple set-ups on a large job site
  • Self-leveling with built-in ‘out-of-level’ shut off that maintains accuracy over the entire work area, and minimizes errors
  • High accuracy laser, 1/16 in per 100 foot with temperature compensation
    provides highly stable, repeatable accuracy even under large temperature changes
  • Uses alkaline or rechargeable batteries–so you are less likely to run out of power and the unit keeps working with no downtime due to power loss
  • Visible ‘spotting’ beam for determining receiver mounting placement making it faster to find the on-grade position
  • Comes with a choice of HL700 or CR600 receivers allowing you to choose the best option to suit your application allowing you to choose the best option to suit your application
Included in this kit
Spectra Precision GL710 Single Grade Laser Kit with HL700 Receiver
Spectra Precision
Spectra Precision Laser HL700 Laserometer
SKU: SP-HL700
Spectra Precision 1046-4750S Small Protective Carrying Case for 500 Series
Spectra Precision
Spectra Precision 1046-4750S Small Protective Carrying Case for 500 Series
SKU: SP-1046-4750S
Spectra Precision GR153/GR152/GR151 15' Telescoping Grade Rod
Spectra Precision
Spectra Precision GR153/GR152/GR151 15' Telescoping Grade Rod
SKU: SP-GR152
Spectra Precision Q104025 Medium Duty Aluminum Tripod
Spectra Precision
Spectra Precision Q104025 Medium Duty Aluminum Tripod
SKU: SP-Q104025
Specifications
Self-Leveling Range ±11 arc minutes
Operating Diameter 500m (1,600ft)
Compensation Type Wire Hung, Air Damped
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Accuracy 1.5 mm at 30 m (1/16 in at 100 ft)
Weight 3.6 kg (8 lbs)
Laser Type 670nm visible, Class 2
Tripod Mount 5/8 in x 11
Battery Life 20°C (68°F) 4 D-Cell Alkaline - 175 hrs NiMH - 100 hrs.
Warranty 5 Years
Spectra Precision

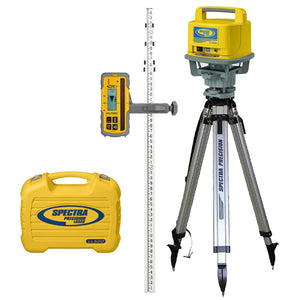

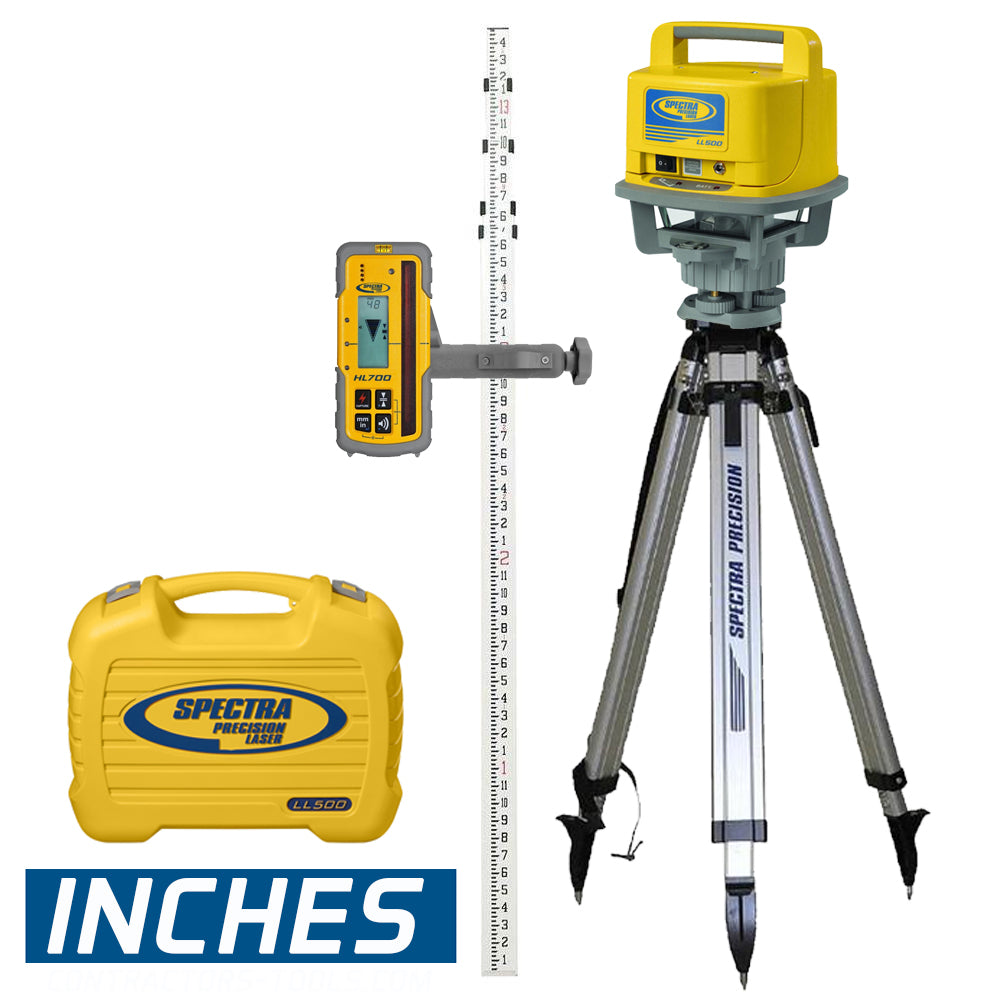

Spectra Precision LL500-1/ LL500-2 - Laser Kit With Rod and Tripod

LL500 Laser, HL700 Receiver, Clamp & Alkaline D Batteries (4)
LL500 Laser, HL700 Receiver, Clamp & Alkaline D Batteries (4)
$1,881.00
$1,881.00
$2,090.00
Shipping calculated at checkout.
Kara’s Choice Free Shipping
Rod Graduations:
Download Product Spec Sheet
Download Spectra Precision LL500-1/ LL500-2 - Laser Kit With Rod and Tripod SDS
Free Shipping!

This item qualifies for free shipping within the continental U.S.
